Product Description

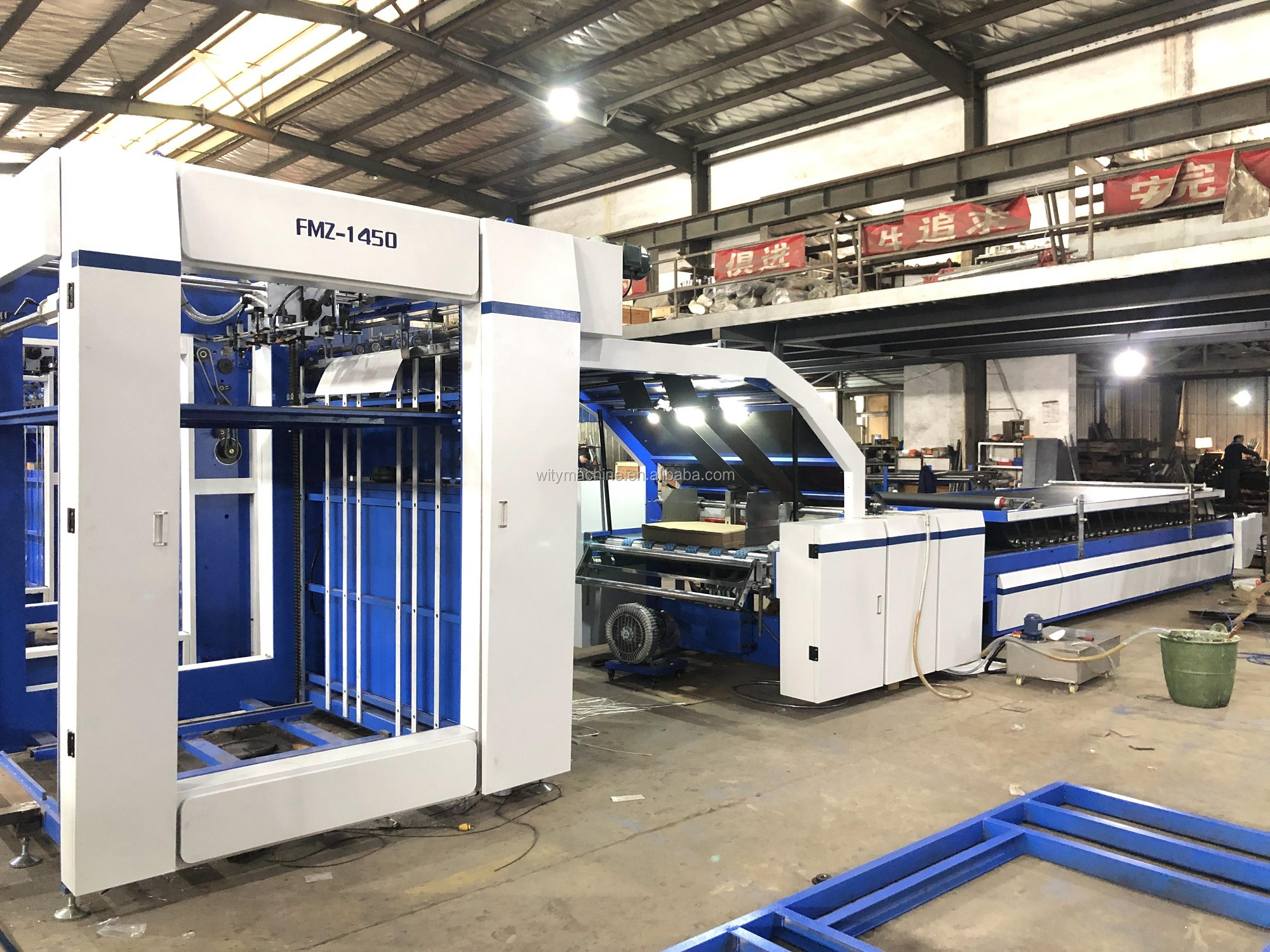

High Speed Automatic Carton Laminating MachineFMZ1450 High speed automatic
Carton Laminating Machine adopts surface paper and bottom paper automatic feeding system. It is suitable for color printing paper and corrugated board’s automatic pasting. Specification
Model | FMZ-1450 |
Max. sheet size | 1400x1300mm |
Min. sheet size | 400x400mm |
Precision | ±1mm |
Machine speed | 2000~6000pcs/hour |
Surface paper thickness | 250~450gsm |
Bottom paper type | A.B.C.E≤ 7mm |
Total power | 15kw |
Overall dimension | 14500x2500x2600mm |
Features 1. Special front location with high accuracy. 2. Surface paper feeding adopts overlapping feeding style which makes paper conveyed more stable. 3. With the advanced PLC tracking technology, the size of paper automatically adjusts the relevant parameters, which makes the machine keep operating at the best state. 4. Bottom paper feeding adopts rotary telescopic frame, which adapts to warped corrugated board. 5. The feeder with pre-stacking device, reducing the stopping time of machine and improving productivity. Details Images

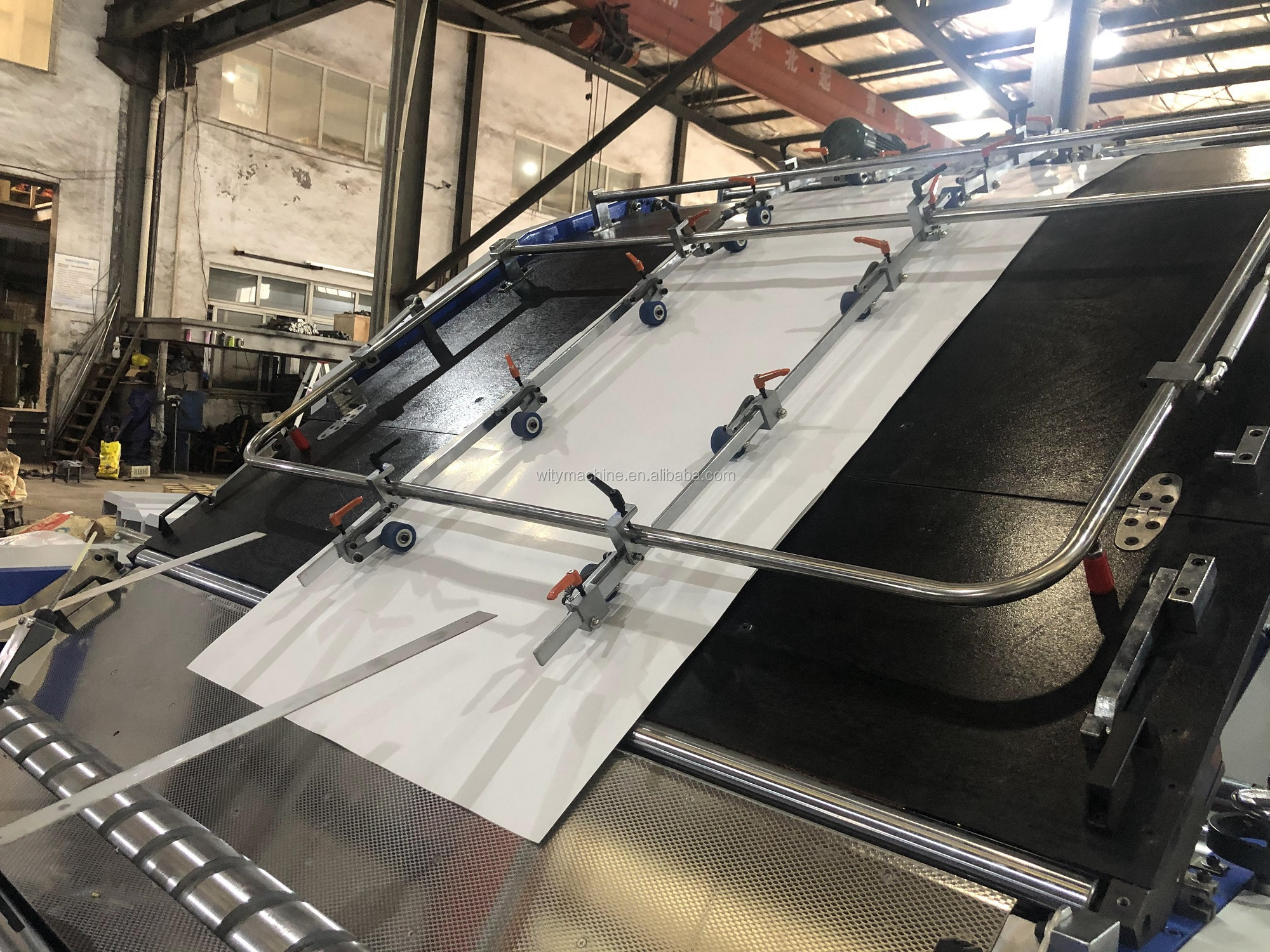

Surface paper feeding

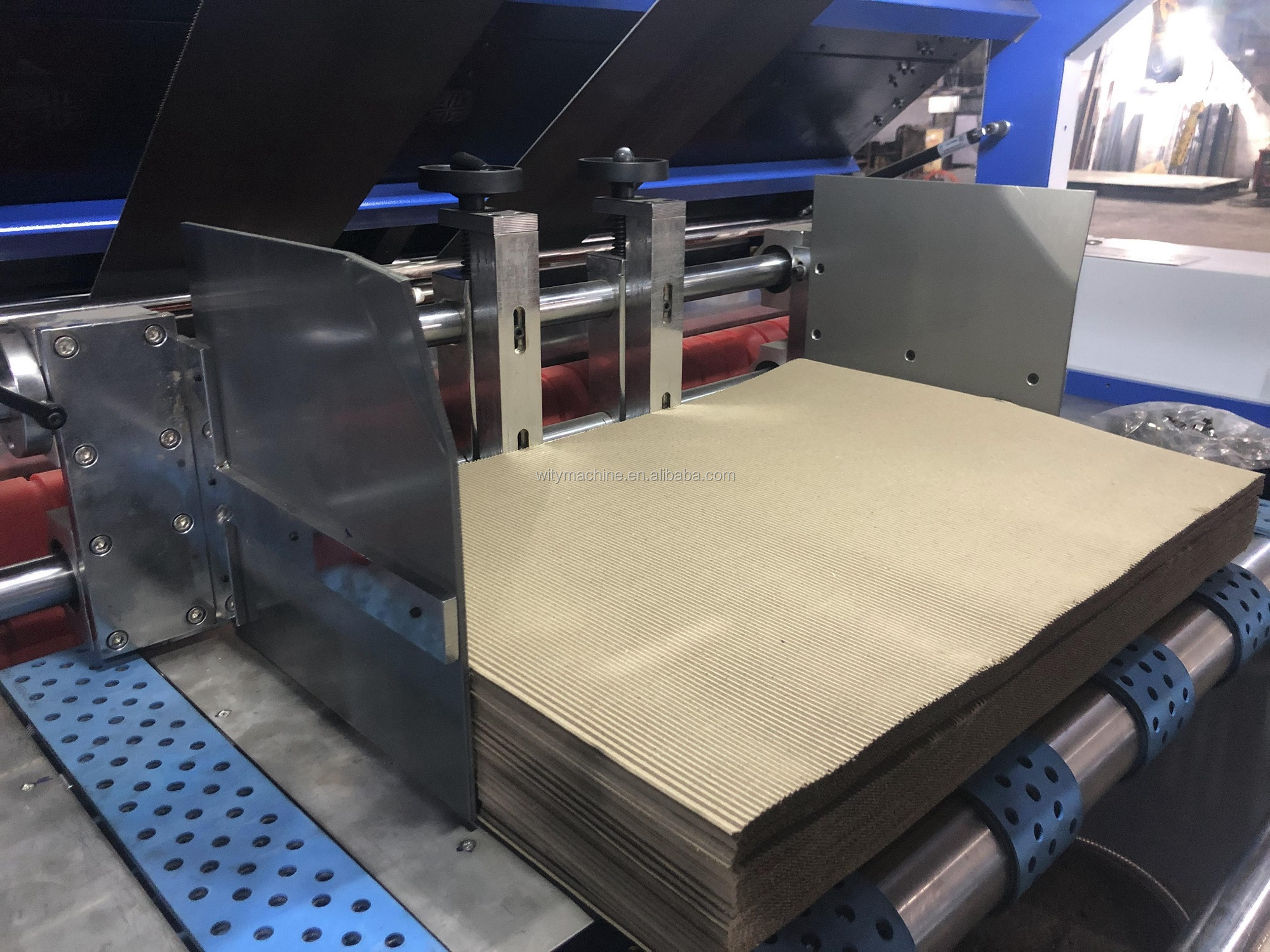

Bottom paper feeding

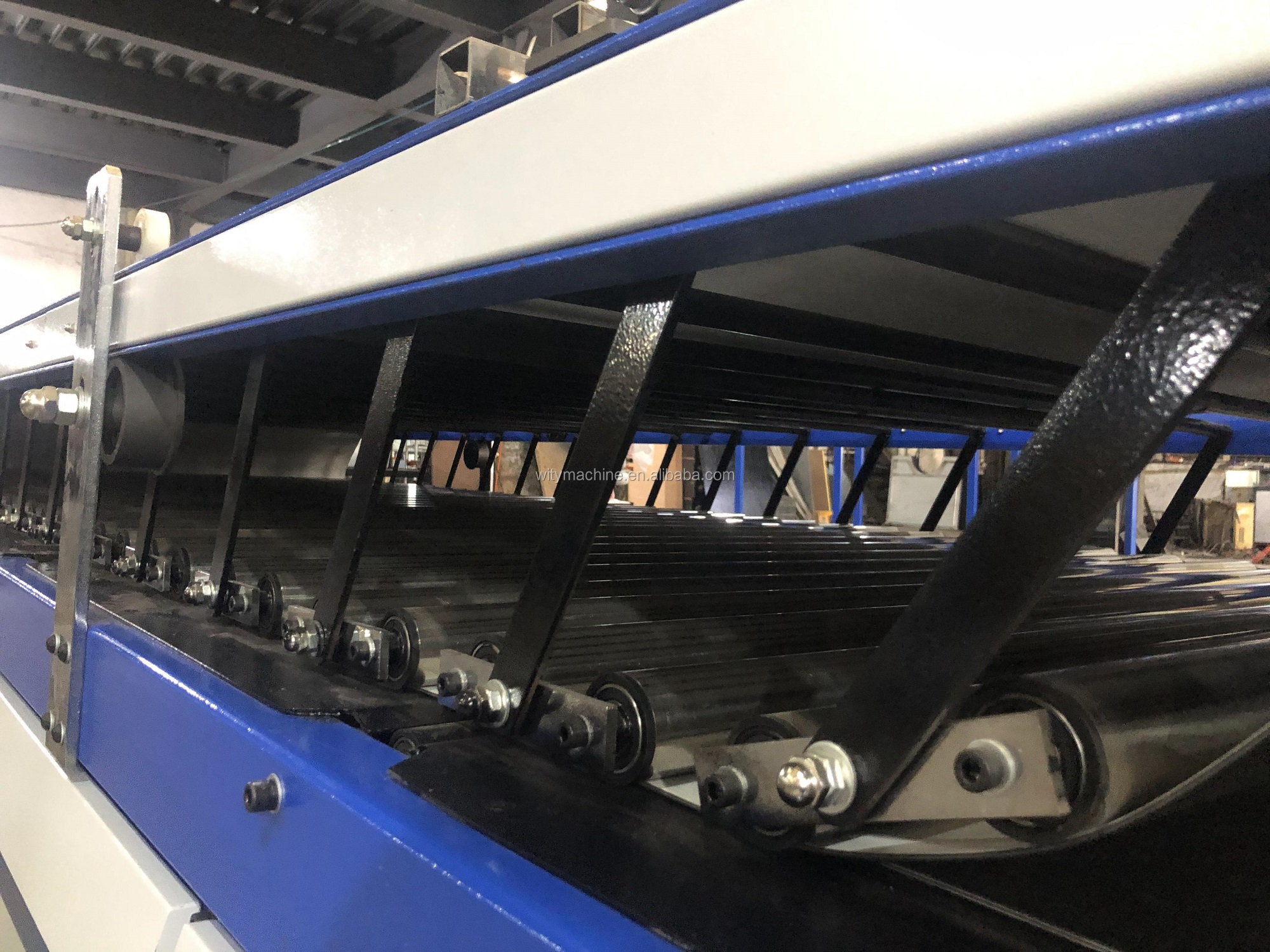

Paper conveying

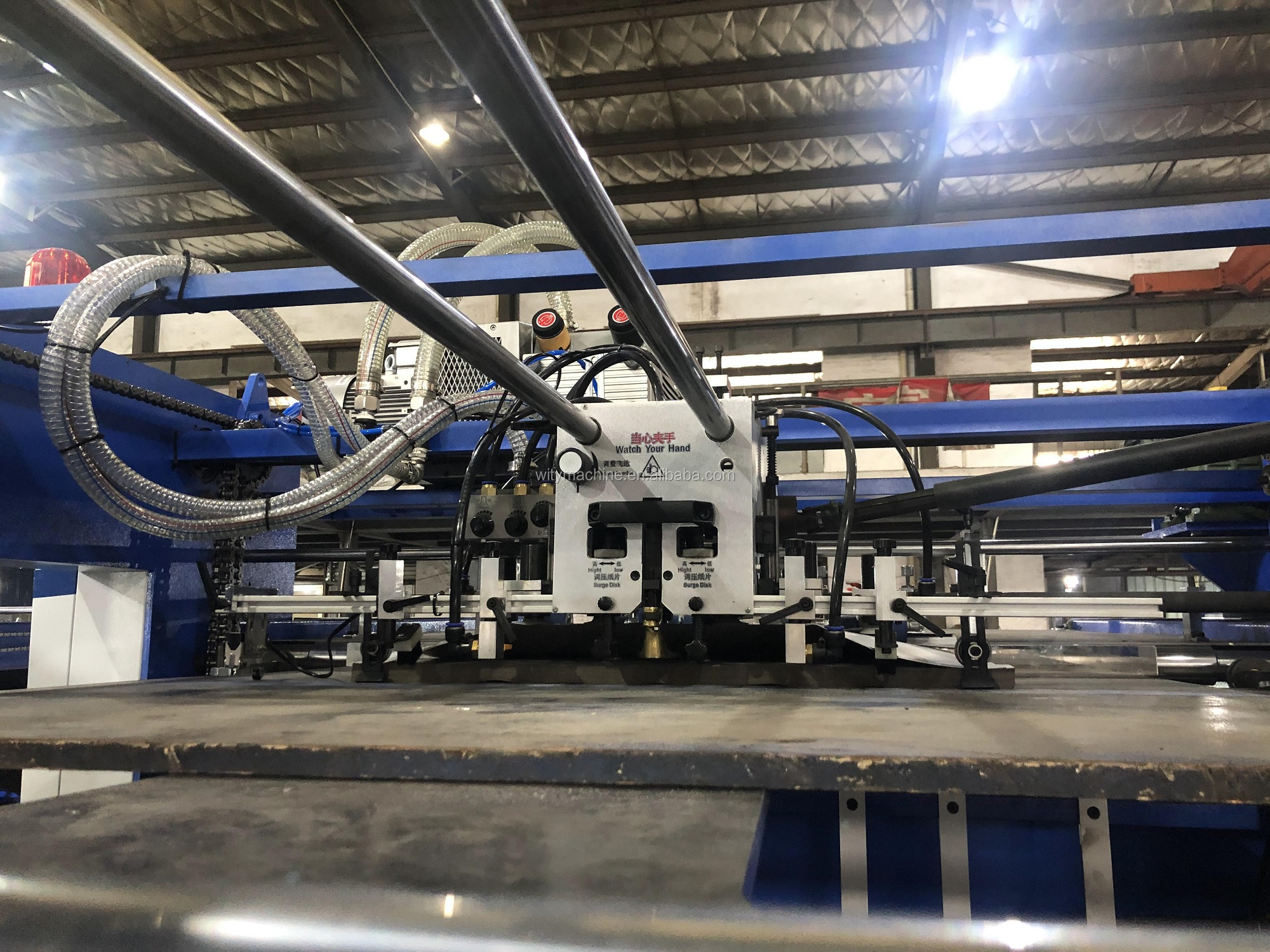

Buttons

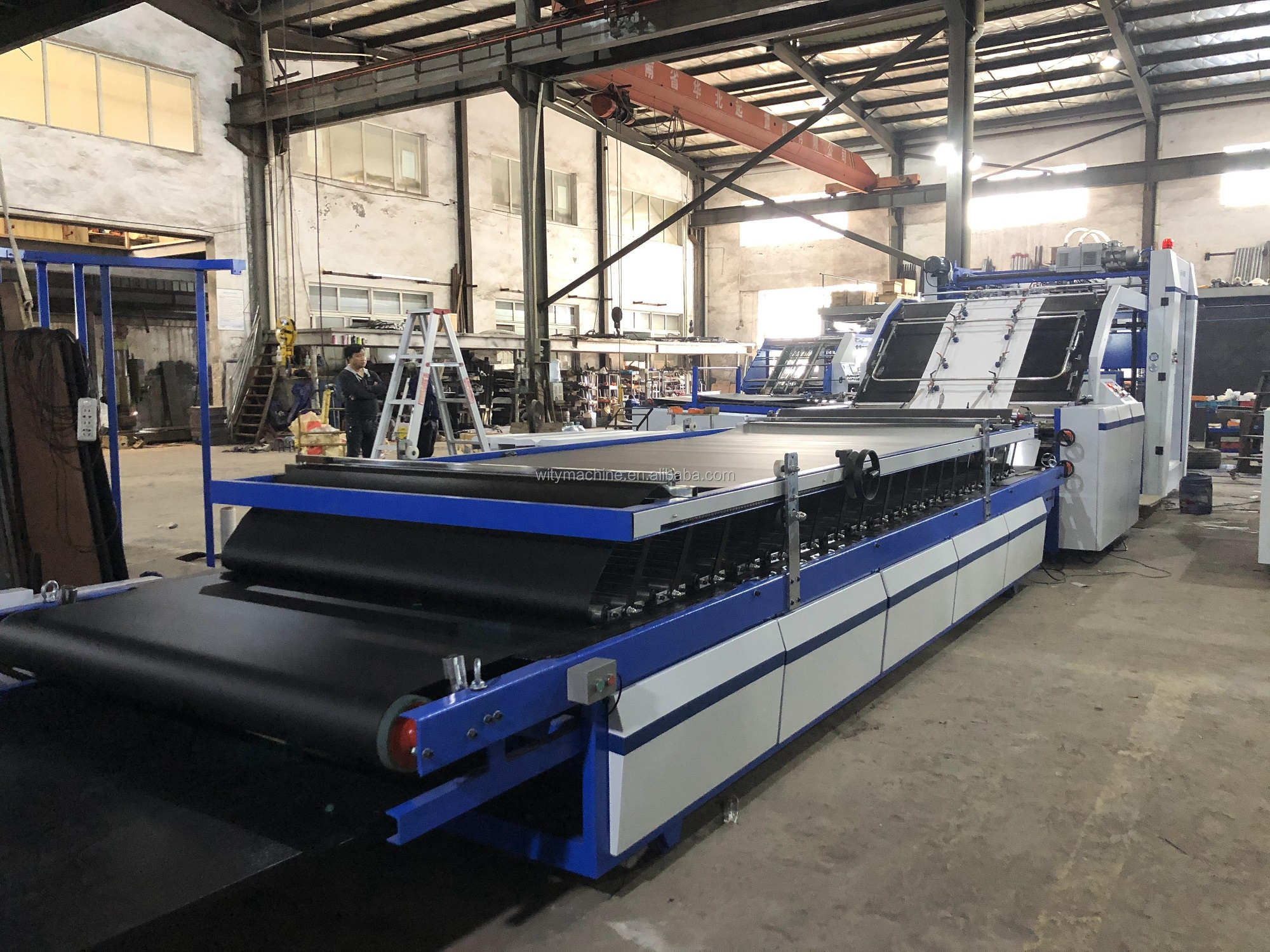

Pressing bed

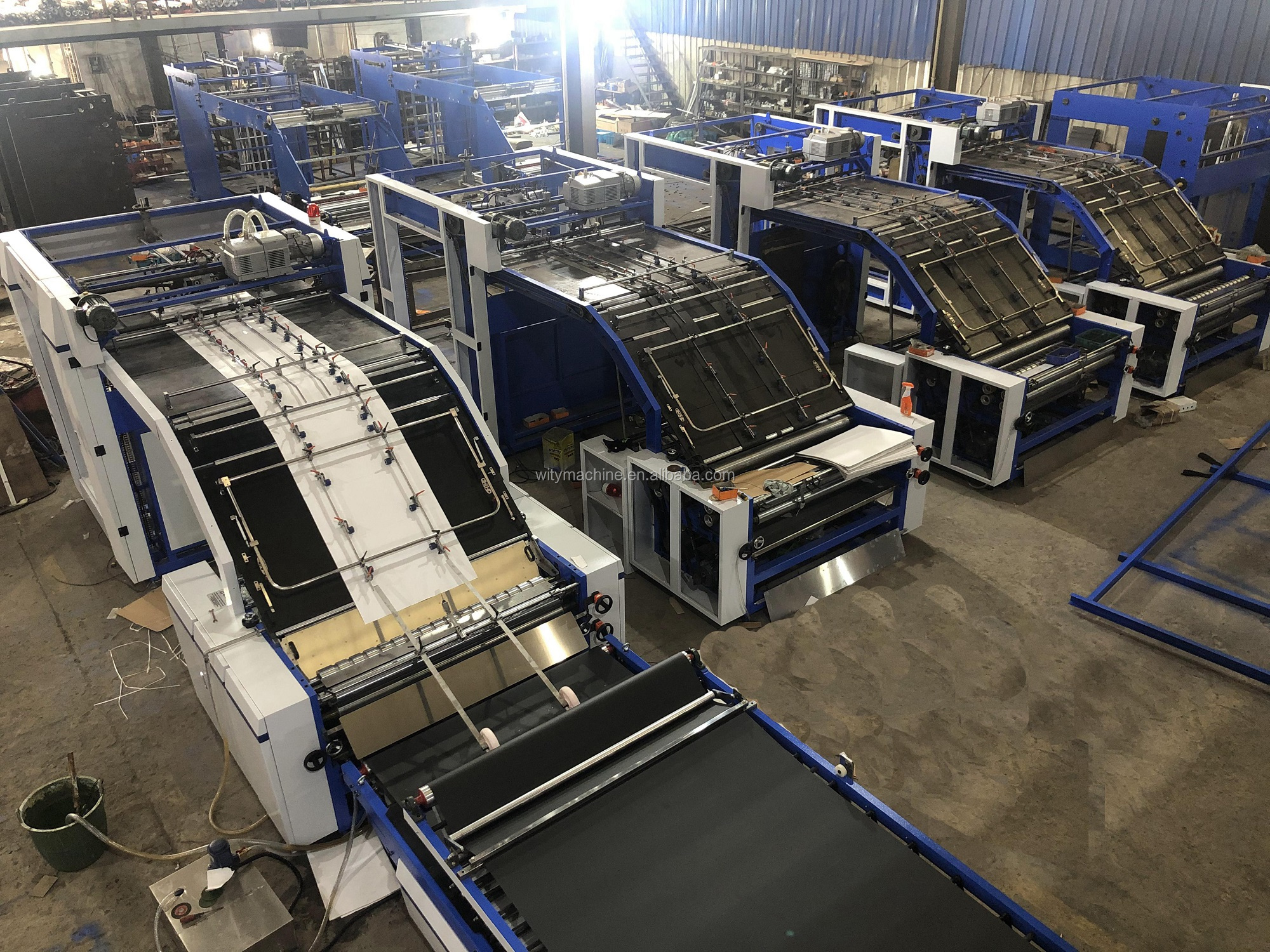

Workshop
Contact us if you need more details on Carton
Laminating Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Flute Corrugated Paper Laminator、Carton Laminator. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Paper Converting Machine > Carton Laminating Machine
